Hubbell Locking Connector NEMA L16-20R 20A 480V 3 Phase Watertight Safety Shroud Reverse Service HBL2433SR

Your Price: $34.99
SKU:
HUBHBL2433SR-EA

*Same Day Shipping

QTY Available to Ship:
7

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

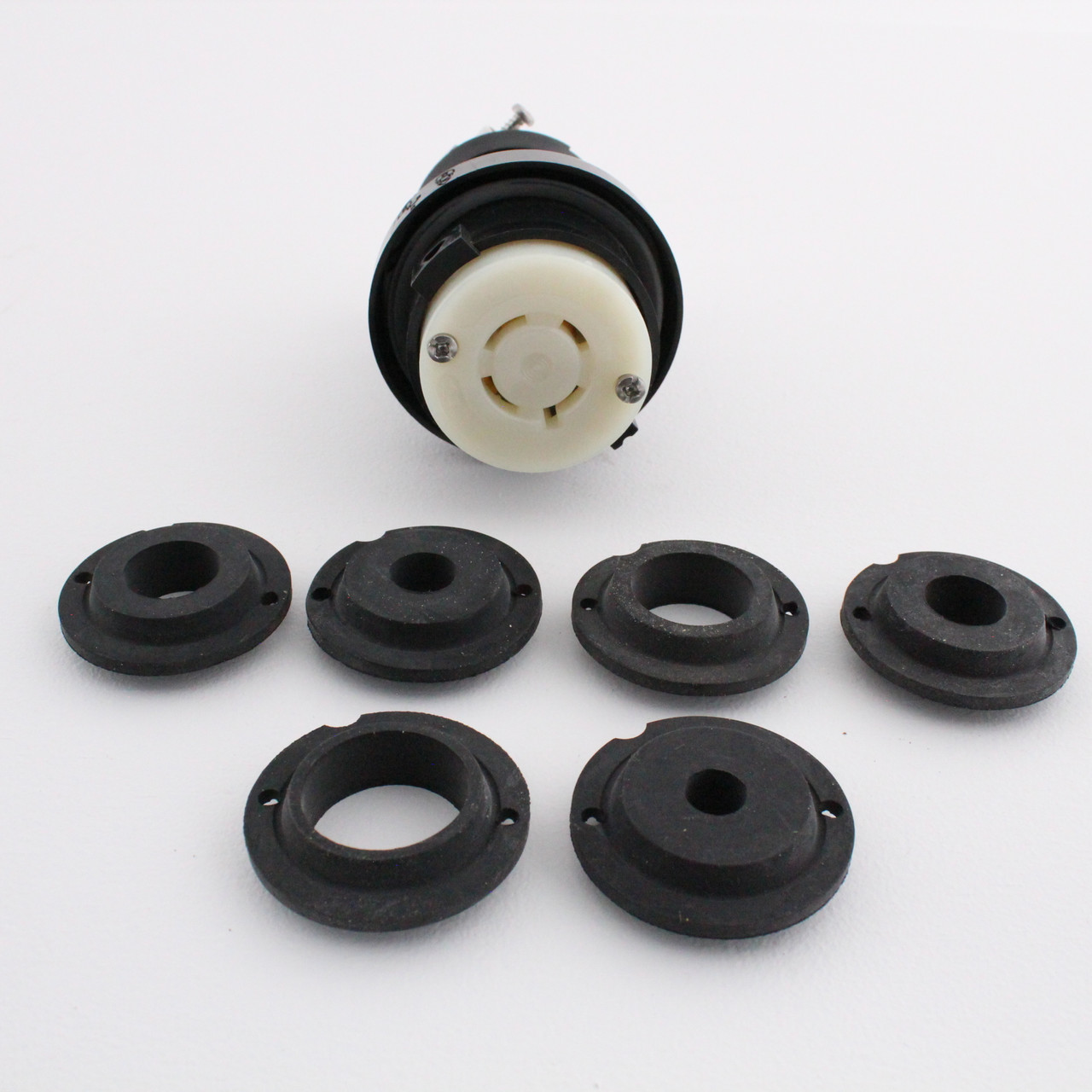

Hubbell HBL2433SR watertight safety shroud locking connector (also known as a reverse service connector). Industrial Specification Grade, NEMA L16-20R, 3-pole, 4-wire, grounding, rated 20A 480V, 3 phase. Cord grip range: .350"-1.150". Each is individually packaged; packaging may differ from photo. Features include:
  • One-piece, rivetless, brass contacts offer enlarged contact surface area, low heat, and long life
  • Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
  • Deep-funnelled, large rectangular-shaped chambered wire wells guide conductors into termination position
  • Transparent wiring chambers provide a means of visual inspection of conductors and terminals
  • Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
  • Color-coded terminal screws
  • Molded-in strip gage provides correct measurement for proper strip length of conductor
  • Captive terminal screws eliminate nuisance dropping and searching for missing screws
  • Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
  • Combination #10-32 deep slotted/ Phillips brass screws
  • Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
  • Wiring module keyed to body for easy assembly
  • Ergonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pulling
  • NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
  • External cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws

MPN:
HBL2433SR
Cross Reference:
Not Available
Color:
N/A
Amperage:
20A

Condition:
New
UPC:
783585355542
Weight:
0.80 LBS
