Bryant L15-30 Locking Flanged Inlet L15-30P Motor Base Plug 30A 250V 3� 71530FRMB NO SCREWS

Your Price: $19.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

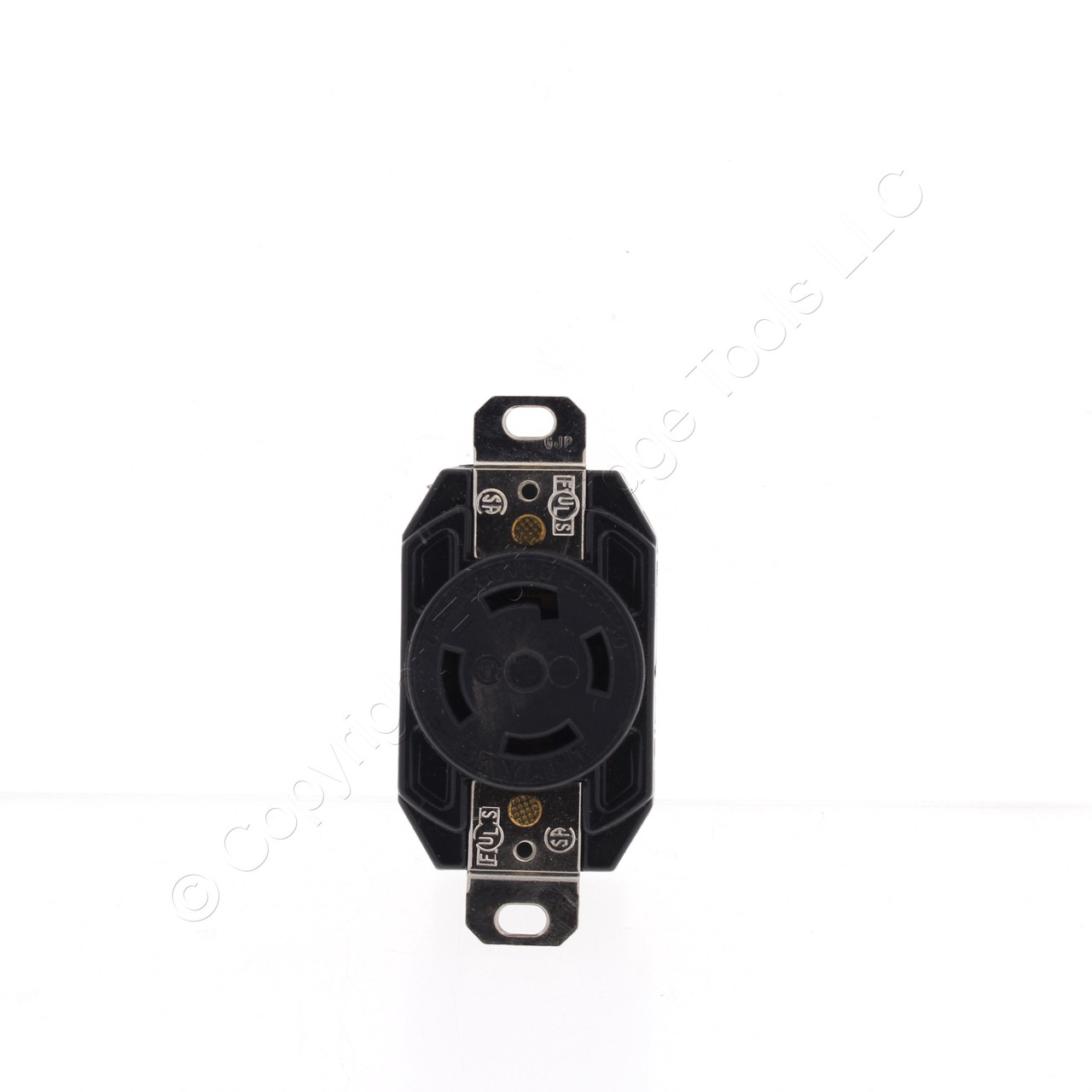

Bryant 71530FRMB locking receptacle (Bryant is a division of Hubbell). Please note that these do not include mounting screws. Tech-Spec Industrial Grade, NEMA L15-30R, 3-pole, 4-wire, grounding, rated 30A 250V 3 phase. Each is individually packaged; packaging may differ from photo. Features include:

One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Thick wall construction provides terminal isolation and strong support for current-carrying parts
Base is molded of rugged reinforced thermoplastic polyester to minimize heat buildup and resist breakage
Heavy-duty mounting straps are nickel-plated to resist corrosion. Wide width design assures secure assembly
NEMA line number and rating are molded into face for easy identification
Face is molded of high-impact nylon to resist breakage
Space-saving design allows more room in box for wiring
Both mounting straps are grounded for safe installation
Captive, combination Phillips/slotted mounting screws
High strength #10 bronze terminal screws resist corrosion and provide secure terminations
Captive terminal screws are deep slotted for easy installations
Combination back and side wiring terminals accept #14 thru #8 AWG solid or stranded copper conductors

MPN:

71530FRMB

Cross Reference:

Not Available

Color:

N/A

Amperage:

30A

Condition:

New

UPC:

NONE

Weight:

0.30 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
