- Hubbell Twist Locking RIGHT ANGLE Plug NEMA L14-20P 20A 125/250V HBL2411SA
QTY Available to Ship:
6
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

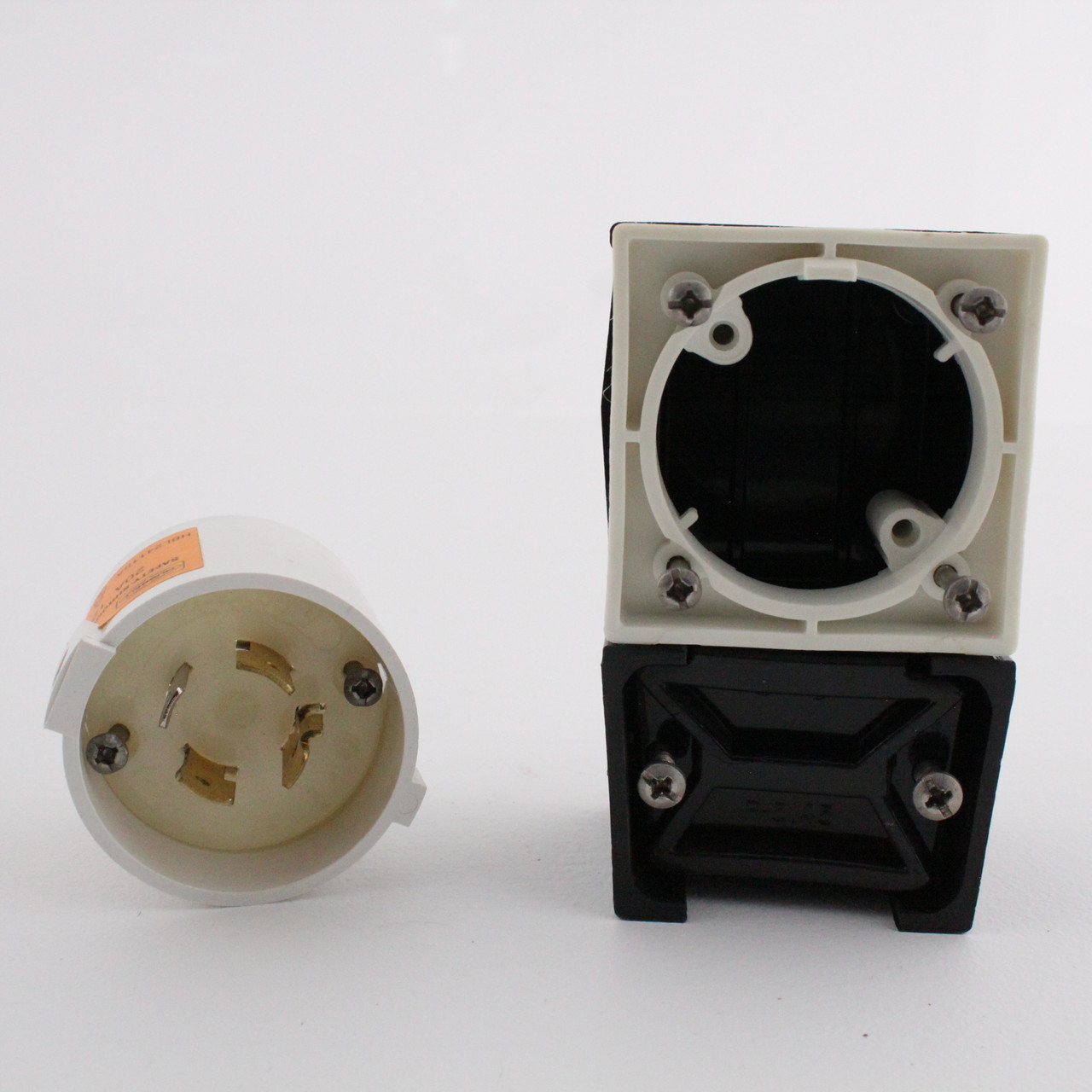

Hubbell HBL2411SA right angle locking plug with Safety-Shroud design. Industrial Specification Grade, NEMA L14-20P, 3-pole, 4-wire, grounding, rated 20A 125/250V. Cord grip range: .350"-1.150". Terminals accommodate #14-#10 AWG. Each is individually packaged; packaging may differ from photo. Features include:
- Solid brass blades are fitted and held tightly and securely in place
- Dead front construction prevents accidental contact with internal parts
- Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
- Deep-funnelled, chamfered wire wells guide conductors into termination position
- Transparent wiring chambers provide a means of visual inspection of conductors and terminals
- Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
- Color-coded terminal screws
- Molded-in strip gage provides correct measurement for proper strip length of conductor
- Terminal identification letters on back cover ensure quick and accurate termination
- Captive terminal screws eliminate nuisance dropping and searching for missing screws
- Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
- Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
- Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
- Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module to body
- NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
MPN:
HBL2411SA
Cross Reference:
Not Available
Color:
N/A
Amperage:
20A
Condition:
New
UPC:
783585162041
Weight:
0.70 LBS
