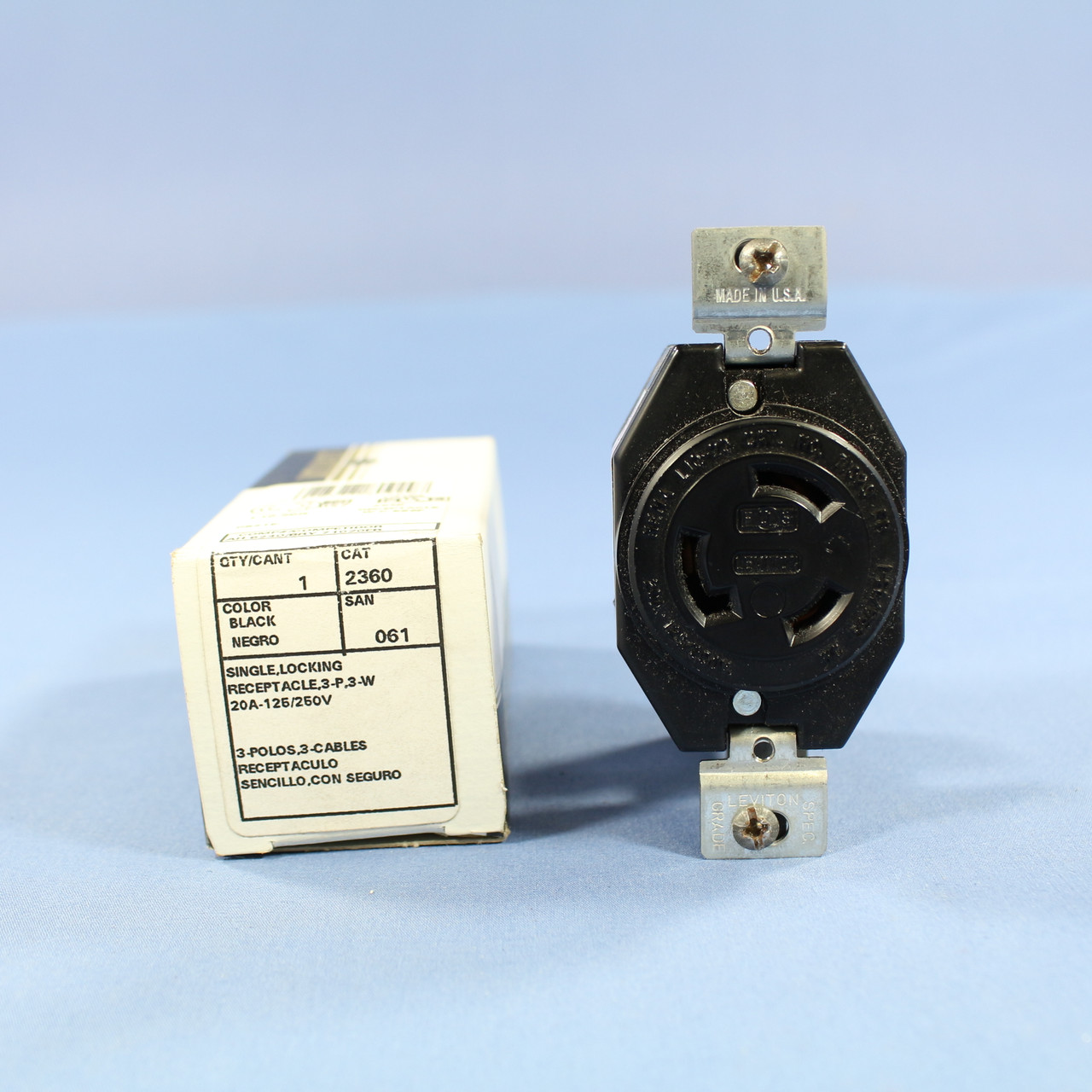

Leviton Locking L10-20 Receptacle NEMA L10-20R Twist Lock Outlet 20A 125/250V 2360 Boxed

Your Price: $11.69

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Leviton 2360 locking receptacle. Industrial Specification Grade, NEMA L10-20R, 3-pole, 3-wire, non-grounding, rated 20A 125/250V. Each is individually packaged. Features include:

Uncompromising industrial-grade quality for superior performance and long service life
Terminals clearly identified to speed and simplify wiring
Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
Contacts deeply seated in thick walled face
Extra-thick .050" mounting strap
Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
Molded-in terminal identification letters
Accepts #8-#14 AWG solid or stranded conductors
Mechanically-secured all-brass ground path

MPN:

2360

Cross Reference:

Not Available

Color:

Black

Amperage:

20A

Condition:

New

UPC:

078477045275

Weight:

0.25 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
