Hubbell Bryant L10-20 Turn Locking Receptacle Twist Lock Outlet NEMA L10-20R 20A 125/250V 71020FR
Your Price: $12.00
QTY Available to Ship:
7
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

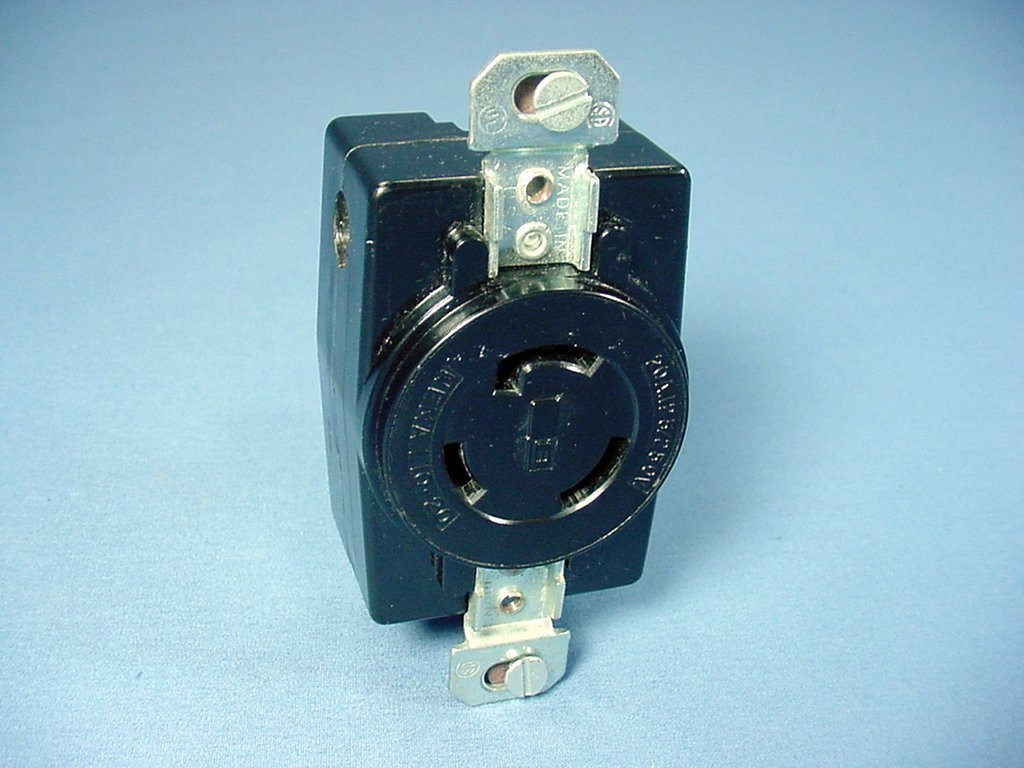

Bryant 71020FR locking receptacle (Bryant is a division of Hubbell). Tech-Spec Industrial Grade, NEMA L10-20R, 3-pole, 3-wire, non-grounding, rated 20A 125/250V. Bulk packed loose with no individual packaging; as a result some may have minor dings. ITEM PICTURED IS FOR REFERENCE ONLY: SCRATCHES, SCUFFS, DINGS, and BLEMISHES WILL VARY FOR EACH INDIVIDUAL ITEM. Features include:
- One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
- Thick wall construction provides terminal isolation and strong support for current-carrying parts
- Base is molded of rugged reinforced thermoplastic polyester to minimize heat buildup and resist breakage
- Heavy-duty mounting straps are nickel-plated to resist corrosion. Wide width design assures secure assembly
- NEMA line number and rating are molded into face for easy identification
- Face is molded of high-impact nylon to resist breakage
- Space-saving design allows more room in box for wiring
- Both mounting straps are grounded for safe installation
- High strength #10 bronze terminal screws resist corrosion and provide secure terminations
- Captive terminal screws are deep slotted for easy installations
- Combination back and side wiring terminals accept #14 thru #8 AWG solid or stranded copper conductors
MPN:
71020FR
Cross Reference:
Not Available
Color:
Black
Amperage:
20A
Condition:
New
UPC:
DOES NOT APPLY
Weight:
0.25 LBS
