Leviton INDUSTRIAL NEMA 6-15R 6-15 Flanged Outlet Weather Resistant Cover 15A 250V 15679-CWP
Your Price: $24.75
QTY Available to Ship:
27
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

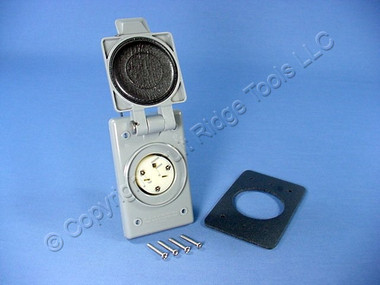

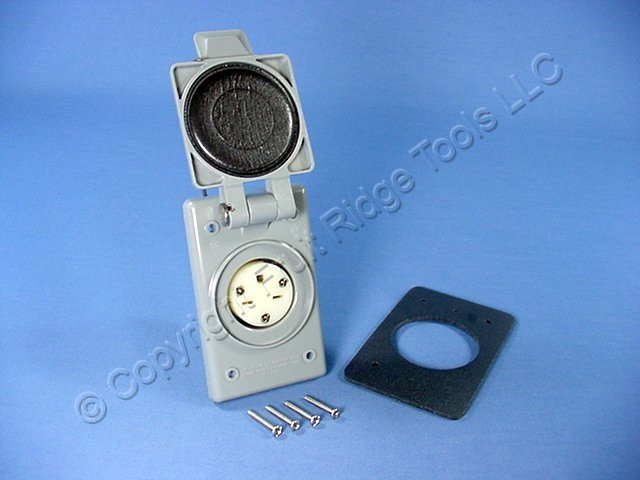

Leviton 15679-CWP straight blade flanged outlet with integrated wallplate and weather-resistant cover. Industrial Specification Grade, NEMA 6-15P, 2-pole, 3-wire, grounding, rated 15A 250V. Each is individually packaged with mounting screws. Features include:
- Glass-filled thermoplastic cover and wallplate provides outstanding impact resistance and durability
- IP 64 Suitability rating protects against dust particles and splashing water
- NEMA Type-3R enclosure Rating (when properly installed) ensures protection against rain, sleet and damage from external ice formations
- Dual gaskets, one under plate and one under lid, for weather-resistant fit
- Stainless steel external hardware resists corrosive effects of moisture
- Large thumb-tab makes it easy to open cover with gloved hand
- Mounts to panels or FS/FD boxes
- Triple-wipe, heavy-duty power contacts set in deep pockets to resist damage
- Contacts are manufactured in solid one-piece brass for superior conductivity
- Individual deep-funnelled rectangular-shaped chamfered wire wells. Clear housing allows inspection of wire termination and provides molded-in wire strip gage
- Wire clamps move in individual chamber ? provide positive crimp lock without cutting wire strand
- Captive, color-coded brass #8 terminal screws
- NEMA configuration and rating molded on front
MPN:
15679-CWP
Cross Reference:
Not Available
Color:
Gray
Amperage:
15A
Condition:
New
UPC:
078477046173
Weight:
0.15 LBS
