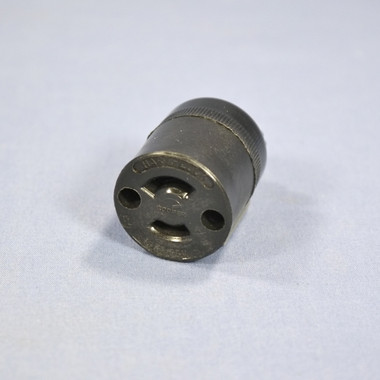

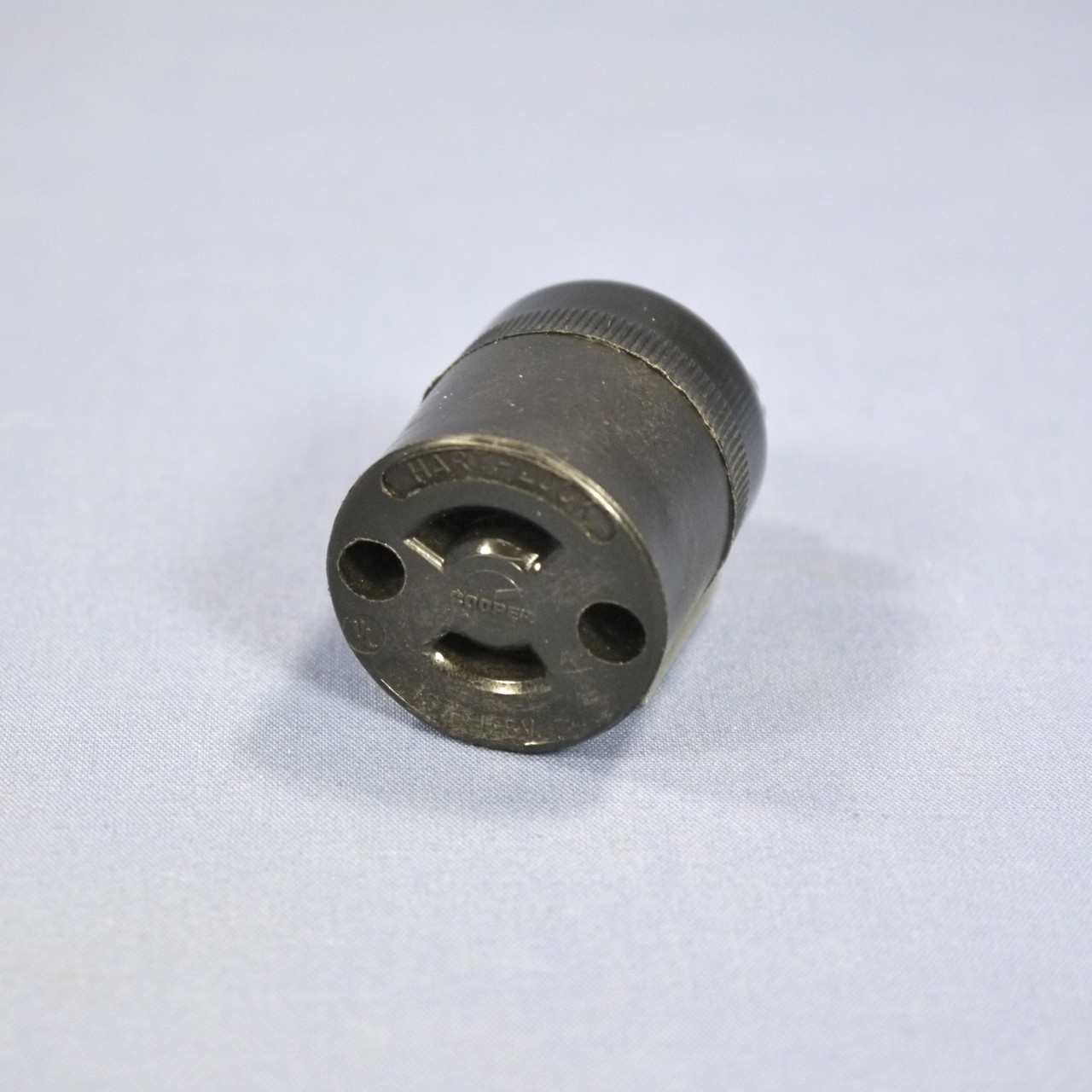

Cooper Hart-Lock ML-1 Midget Type Locking Connector Plug Twist Lock NEMA ML1R 15A 125 7464N

Cooper Hart-Lock 7464N midget locking connector. Midget size offers a smaller form factor for limited-space applications; approximately 1" in diameter. Industrial Specification Grade, NEMA ML1R, 2-pole, 2-wire, non-grounding, rated 15A 125V. Cord grip range: .22"-.31". Terminals accommodate #18-#14 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:

• One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
• Cleat on contacts cuts oxidation when plug blade enter contact surface
• Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
• Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
• Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
• Color-coded terminal screws
• Molded-in strip gage provides correct measurement for proper strip length of conductor
• Captive terminal screws eliminate nuisance dropping and searching for missing screws
• Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
• Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
• Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
• Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module (12-14 in.-lbs.) to body
• Ergonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pulling
• NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
• External cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws
