Bryant California Style Locking Flanged Inlet Non-NEMA 50A 250V 3� Male Motor Base Reverse Service Inlet CS8375M5CT

Your Price: $69.99
SKU:
BRYCS8375M5CT-EA

*Same Day Shipping

QTY Available to Ship:
159

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

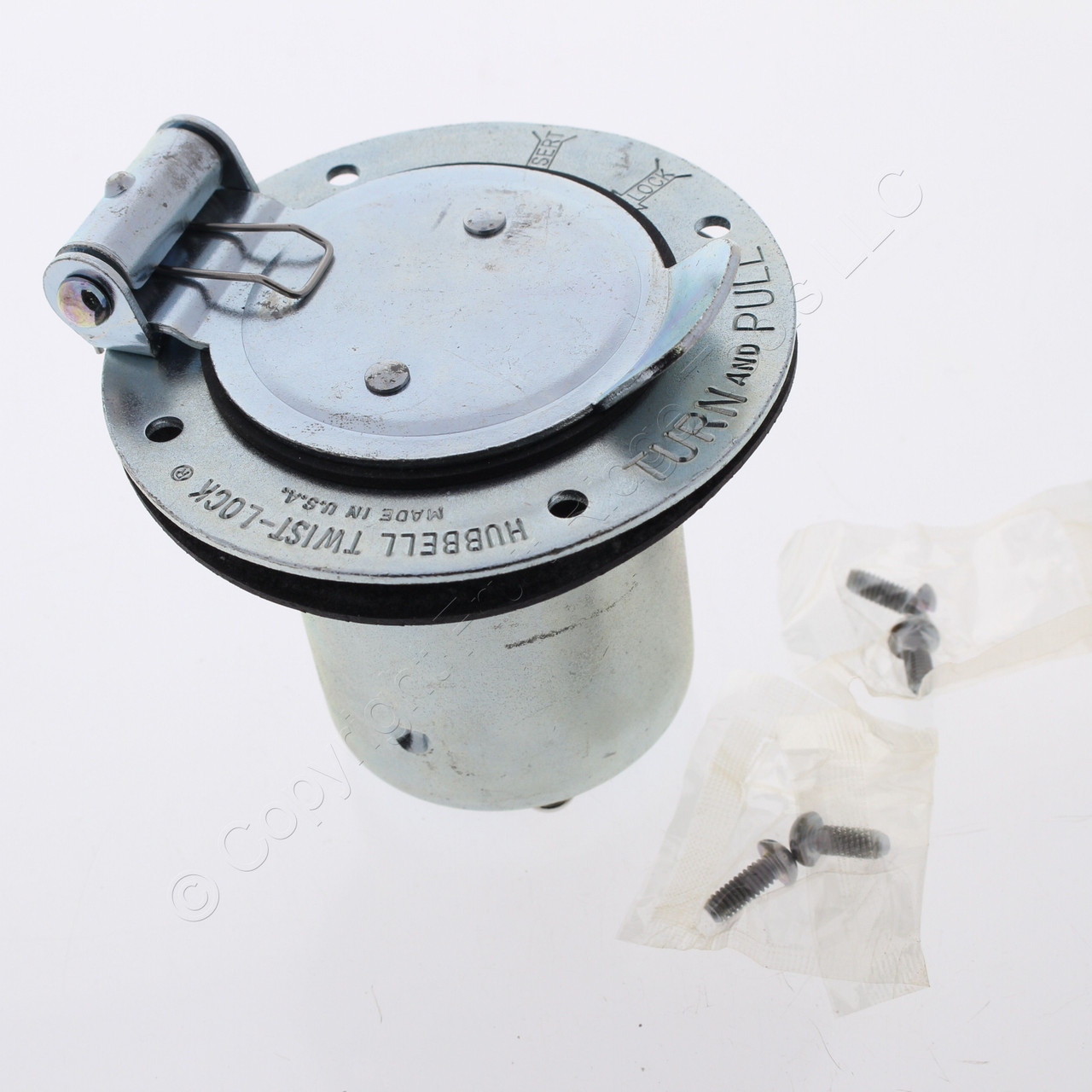

Bryant/Hubbell CS8375M5CT California Style ("CS") locking flanged inlet plug with hinged metal cover; also referred to as a male motor base or reverse service inlet (Bryant is a division of Hubbell). Industrial Grade, Non-NEMA (California Style), 3-pole, 4-wire, grounding, rated 50A 250VAC 3 phase. Each is individually packaged; packaging may differ from photo. Features include:
  • Spring loaded metal cover
  • Box terminal with Allen-head terminal screws permits a high clamping pressure on conductors without damaging strands accept #8 through #4 AWG
  • Thermoplastic polyester interior provides impact strength and heat resistance
  • Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
  • Solid brass blades are fitted and held tightly and securely in place
  • Dead front construction prevents accidental contact with internal parts

MPN:
CS8375M5CT
Cross Reference:
Not Available
Color:
N/A
Amperage:
50A

Condition:
New
UPC:
781786128231
Weight:
1.00 LBS
