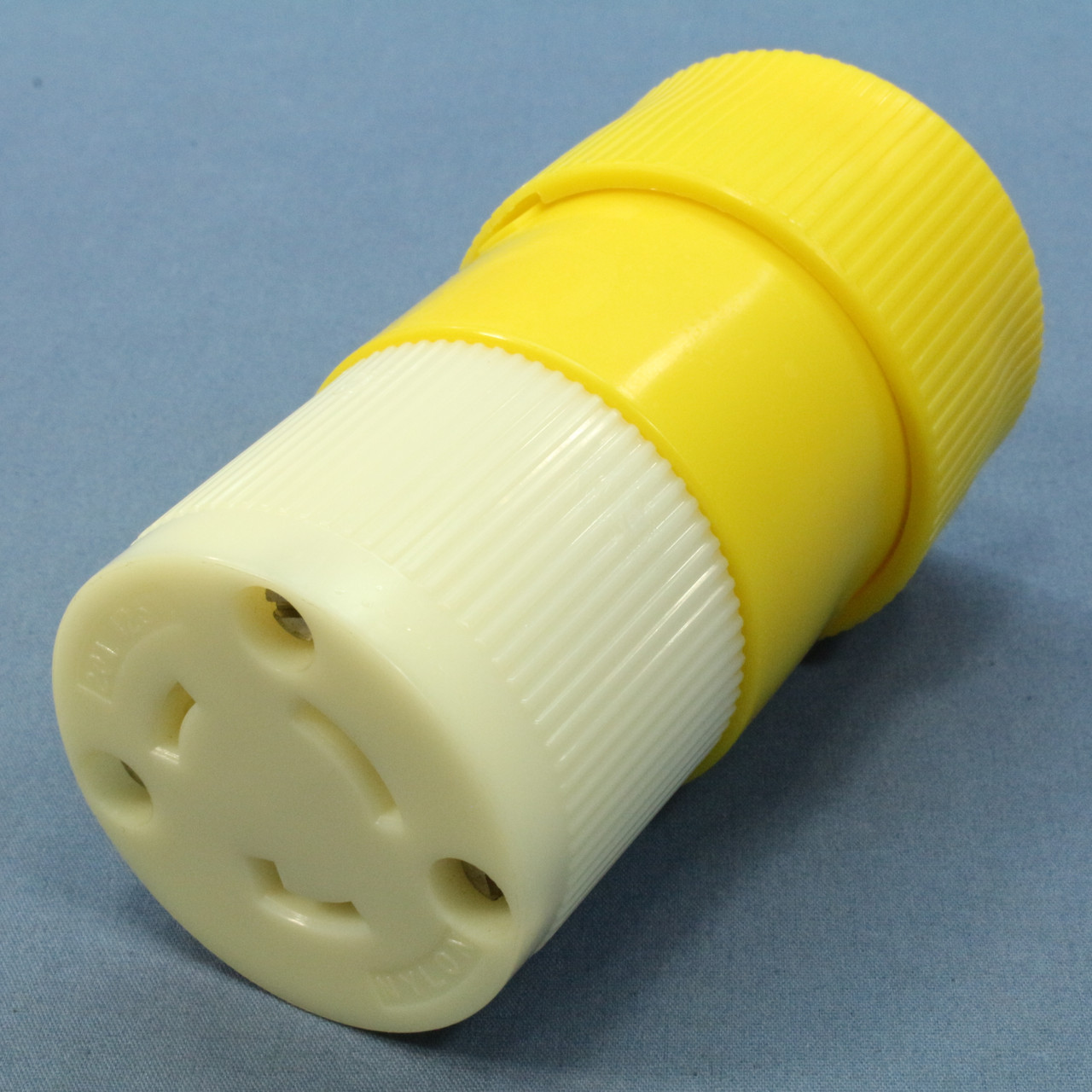

Bryant CORROSION RESISTANT Twist Turn Locking Connector Female NEMA L5-20R 20A 125V 70520-NCCR

Your Price: $14.25

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Bryant 70520-NCCR corrosion resistant locking connector. Industrial Specification Grade, NEMA L5-20R, 2-pole, 3-wire, grounding, rated 20A 125V. Cord grip range: .240"-.700". Terminals accommodate #18-#10 AWG. Bulk packed loose with no individual packaging or instructions. Features include:

Heavy duty .062" copper alloy contact plate provides excellent conductivity. High performance copper-alloy contacts have excellent spring retention properties and provide superior contact pressure. Clamp-type terminals have .078" over-sized clamp nut with undercut for secure retention of conductor
Transparent terminal cover with extended "teardrop" wiring pockets - provides good visibility and proper wire separation in the assembled plug
Internal self-centering Triple-Gripper cord grip with "radius teeth" design provides secure cord retention
Amperage, voltage, and NEMA line number imprinted on face for easy identification
Face and body have contrasting key for easy assembly
Hand grip features wide-rib, non-slip design with industrial black matte finish
Impact/chemical-resistant toughened nylon construction
Double wall construction
EDPM dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
Tapered cover eliminates snagging
Captive combination Phillips/slotted terminal and assembly screws come backed out for easy assembly

MPN:

70520-NCCR

Cross Reference:

Not Available

Color:

Yellow

Amperage:

20A

Condition:

New

UPC:

DOES NOT APPLY

Weight:

0.35 LBS
