Leviton Panel Mount Fluorescent Lampholder T8 T10 T12 Light Socket G13 Base Medium Bi-Pin Captive Nut & Screw 13451-ONX

Your Price: $1.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

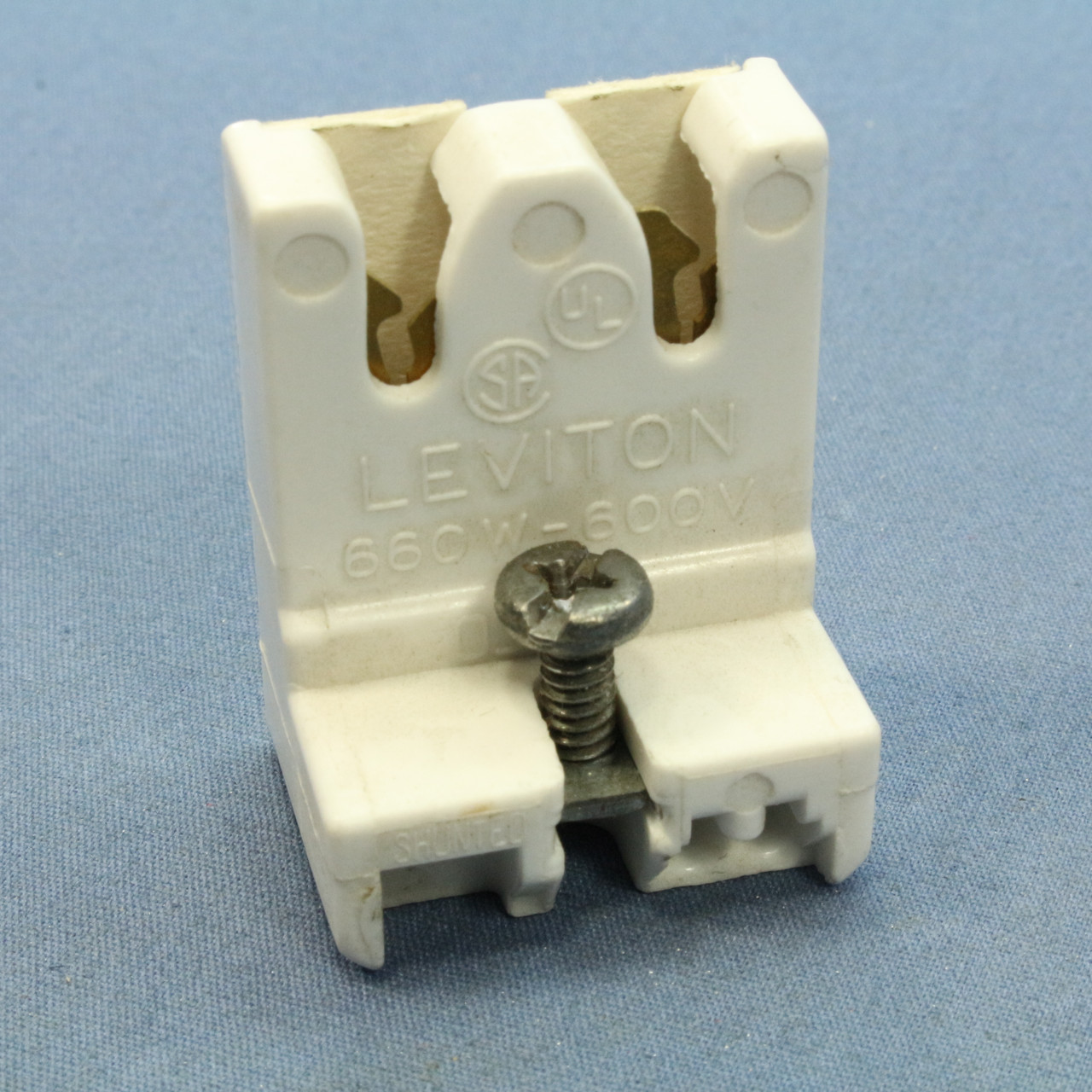

Leviton 23451-ONX white fluorescent lamp holder - for use with T-8 lamps only. Low profile panel mount design with 0.63" center lamp height. Molded thermosetting urea with copper-alloy, double edge contacts, and knife-edge contacts. Shunted lampholder is specially designed for use with electronic ballasts. Features include:

Medium Bi-Pin socket for T-8 fluorescent lamps only - G13 base
Recessed wire wells completely enclose conductor, insulating against shorts
Large “S” identifies shunted version
Specially designed for use with electronic ballasts
Captive nut and screw are standard
Multiple terminal slots permit double connections at contact
Extra low profile panel mount design - 0.63" lamp center height
Quickwire termination for 18 AWG solid wire or tinned stranded wire
Rated 660W 600V
For use with standard 18-20 gauge panel thicknesses - fits standard 1" wide panel openings
Captive nut in base is threaded 6-32

MPN:

23451-ONX

Cross Reference:

Not Available

Color:

White

Condition:

New

UPC:

DOES NOT APPLY

Weight:

0.05 LBS
