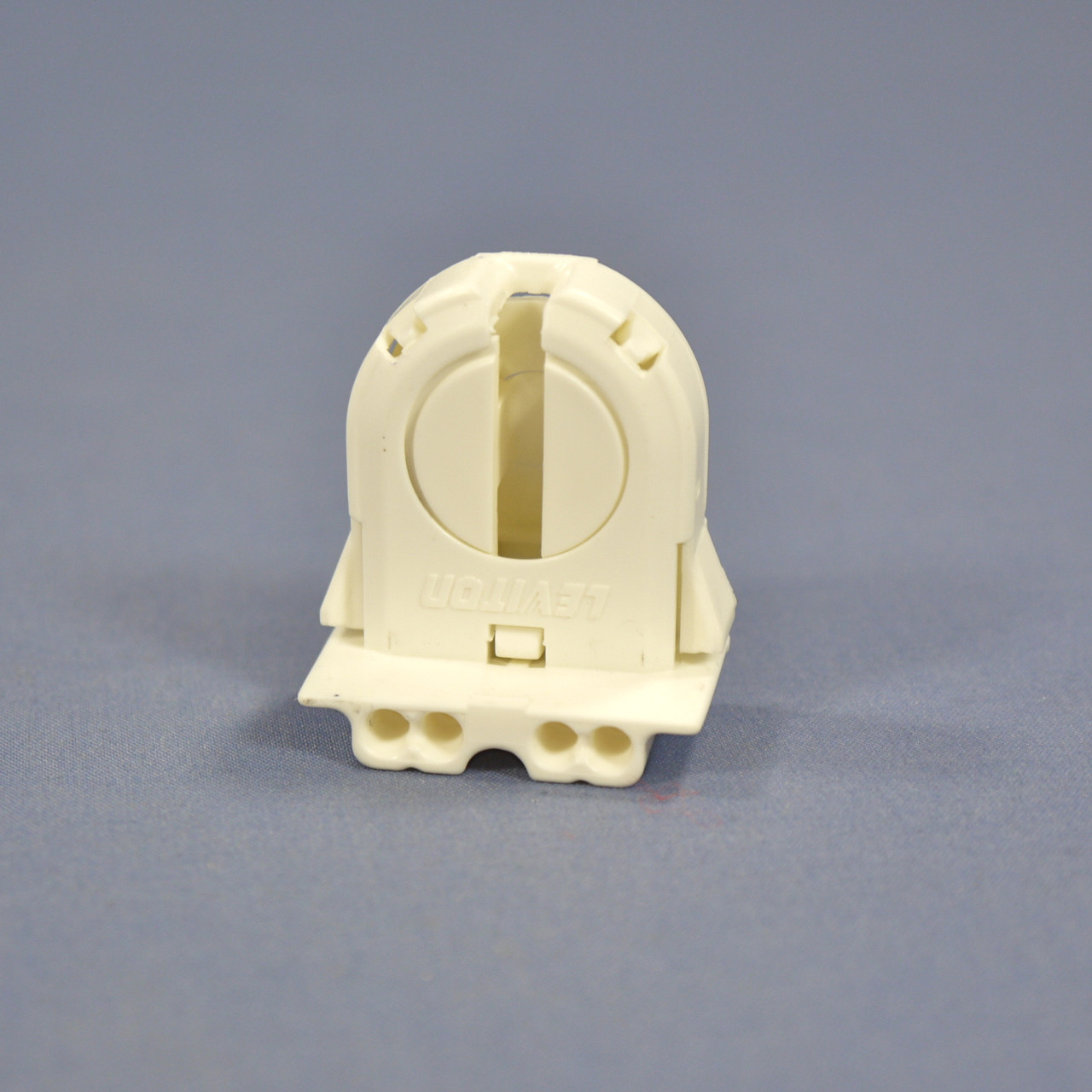

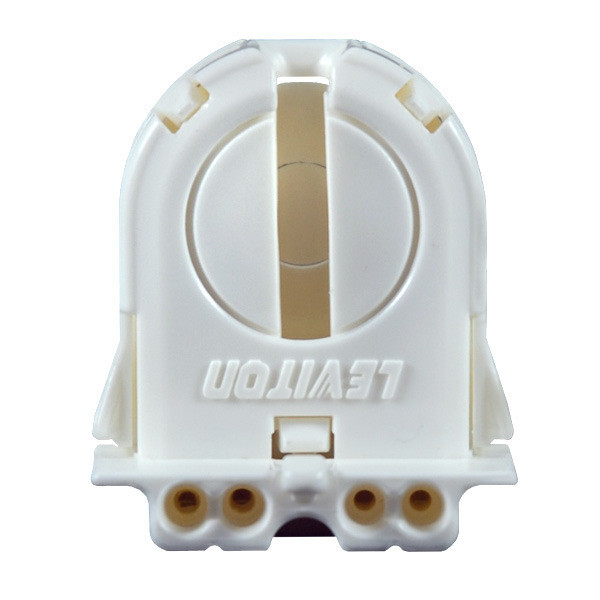

- Leviton Fluorescent Lamp Holder Light SocketT-8 T8 Low Profile Bi-Pin 13652-WNP
QTY Available to Ship:
1422
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description
Leviton 13652-WNP fluorescent lampholder for medium bi-pin T-8 lamps (not for T-12). Extra low profile design with 0.63" lamp center height. Thermoplastic lampholder with front push-in wiring ports for easier access, snap-in or slide-on mounting options, knife-edge contacts and a 4-position, positive-stop lamp-lock that makes it simple for end-users to relamp in service. Fits thin 22 to 25 gauge panels that facilitate smaller, more cost-effective fixtures. Bulk packed loose with no individual packaging or instructions. Features include:
- Medium Bi-Pin socket for T-8 fluorescent lamps - G13 base
- Extra low profile design - 0.63" lamp center height
- Easy snap-in or slide-on installation - no built-in panel locator post
- 4-position, positive-stop lamp-lock socket for easy lamp changing
- Quickwire termination for 18 AWG solid wire
- Rated 660W 600V
- Narrow fin design for use in 0.375" x 1.04" panel openings
- For use with standard 22-25 gauge panel thickness
MPN:
13652-WP
Cross Reference:
Not Available
Color:
White
Condition:
New
UPC:
DOES NOT APPLY
Weight:
0.05 LBS
