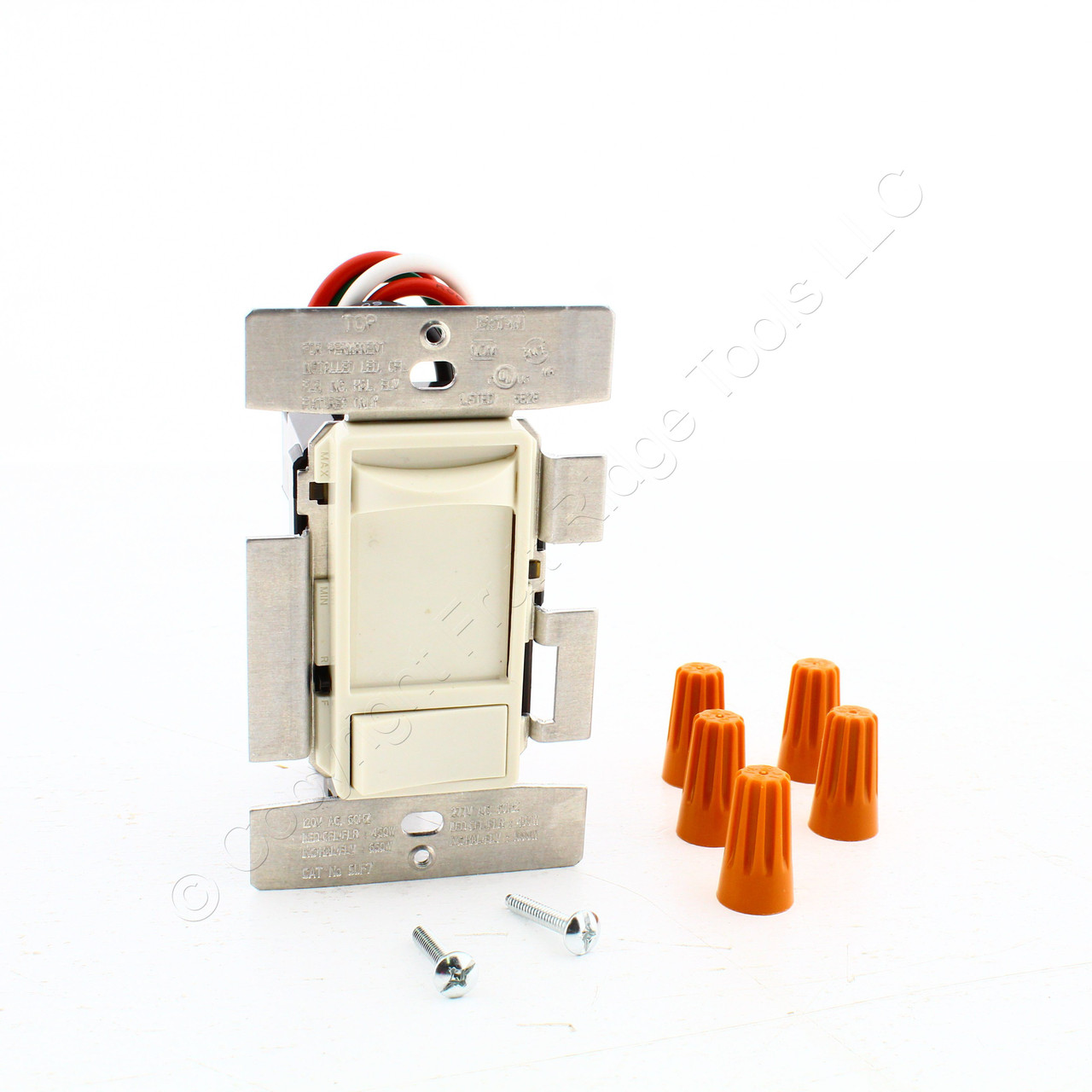

Eaton Lt Almond Universal Slide Dimmer 120/277V LED CFL ELV INC HAL FLR SUF7-LA

Eaton SUF7-LA light almond universal phase-selectable slide dimmer. One dimmer that can be used in just about any installation: 120VAC, 277VAC, LED, CFL, electronic low voltage, incandescent, halogen, and fluorescent. The only type of lighting that this cannot control is magnetic low voltage (low voltage lighting with an external magnetic transformer). Suitable for single pole or 3-way installations - 3-way operaton requires a conventional 3-way ON/OFF switch at the second location. Features include:

• Neutral IS required for installation - please check the electrical box that this will be installed in before ordering to make sure that it has a neutral wire available
• Rated 450W 120/277VAC for LED, CFL and electronic low voltage; rated 650W 120V for incandescent, halogen and electronic low voltage; rated 1000W 277V for incandescent, halogen and electronic low voltage
• User can select between forward and reverse phase cut dimming for most optimal dimming compatibility
• Preset feature allows user to return to previous light level when turning lights ON
• Universal dimming of most common phase-cut dimmable lighting loads - please note that this is not compatible with magnetic low voltage lighting (the order style low voltage lighting with the large transformer box)
• No de-rating required for LED/CFL loads in multi-gang applications
• Integrated full-slide control for easy, precise operation
• Device can be wired into either location in a 3-way installation (load side or line side) - a convetional 3-way switch should be installed in the second location
• Adjustable low-level trim setting for optimal lamp compatibility
• Radio frequency interference filtering is standard on all models
• Electrostatic discharge protection
• Surge protection for load and device
• Compatible with any decorator wallplate or screwless decorator wallplate
