- Leviton Black ECT 18 Series Cam Female Panel Receptacle Ball Nose 400A 18R24-E
QTY Available to Ship:
11
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

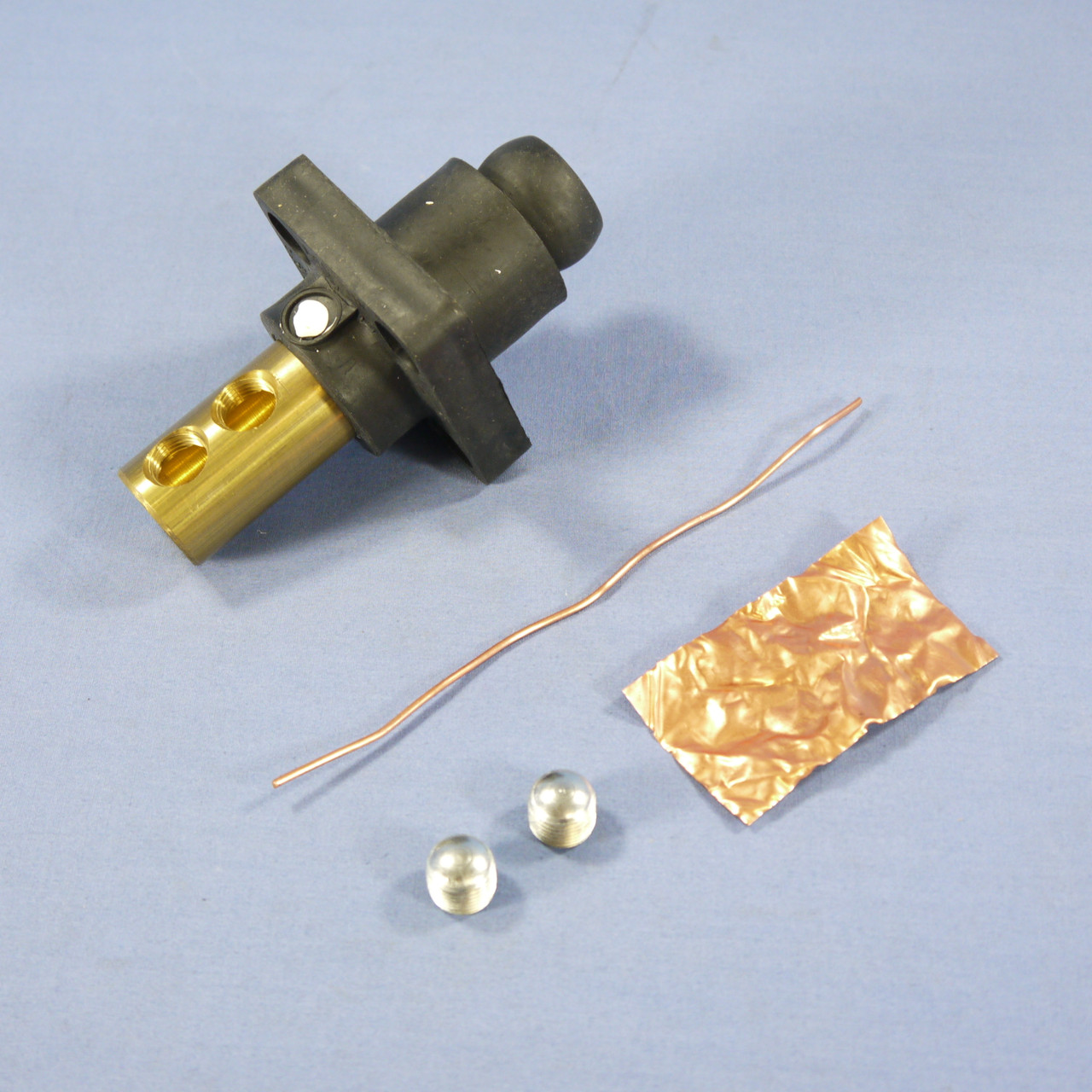

Leviton 18R24-E black female panel receptacle - double set screw style. For use with 18 Series ball nose connectors. Features include:
- Rated up to 400A 600V (with proper cabling)
- Cable capacity: 1/0 to 4/0 AWG
- Used by the welding industry in the United States as well as the broadcasting industry in Canada
- Intermateable and completely compatible with competitive cam-type products - can be retrofitted to existing locations and power distribution systems
- Locking and reinforcing ring won't melt, break or crack
- Shatter and crack proof - high durometer thermoplastic elastomer(TPE) or neoprene rubber
- Color coded insulating sleeves - fast and easy phase identification
- Prevents arcing or burning - no movement of contact surfaces
- Self compensating for wear - slit and cam in male contact provides spring action for longer usage
- Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
- High conductivity - positive vibration-proof connection provided by double cam design
MPN:
18R24-E
Cross Reference:
E10181725, E1018-1725
Color:
Black
Amperage:
400A
Condition:
New
UPC:
078477093719
Weight:
0.90 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
