- New Leviton White 17 Series Female Vulcanized Cam-Type Plug 690A 600V 17V25-W
QTY Available to Ship:
9
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

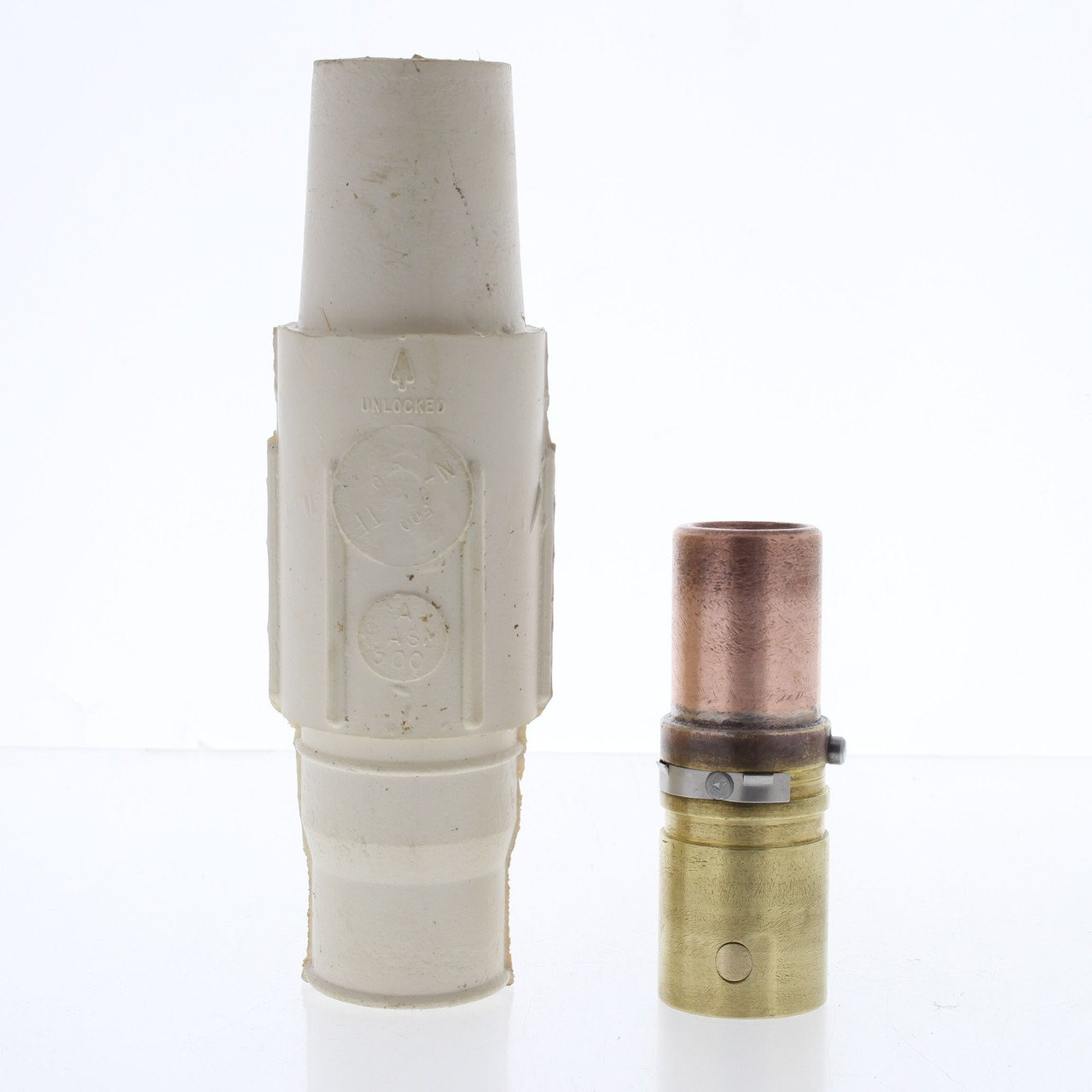

Leviton 17V25-W white vulcanized cam-type plug - crimped style. For use with 17 Series taper nose connectors. Features include:
- Rated up to 690A 600V (with proper cabling)
- Cable capacity: 350 to 500 MCM
- Designed to withstand grueling, heavy duty industrial use. Applications include: generator test stations, water purification plants, electrochemical machining equipment, and other general industrial uses.
- Intermateable and completely compatible with competitive cam-type products - can be retrofitted to existing locations and power distribution systems
- Locking and reinforcing ring won't melt, break or crack
- Shatter and crack proof - high durometer thermoplastic elastomer(TPE) or neoprene rubber
- Color coded insulating sleeves - fast and easy phase identification
- Prevents arcing or burning - no movement of contact surfaces
- Self compensating for wear - slit and cam in male contact provides spring action for longer usage
- Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
- High conductivity - positive vibration-proof connection provided by double cam design
MPN:
17V25-W
Cross Reference:
Not Available
Color:
White
Amperage:
690A
Condition:
New
UPC:
078477991657
Weight:
1.95 LBS
