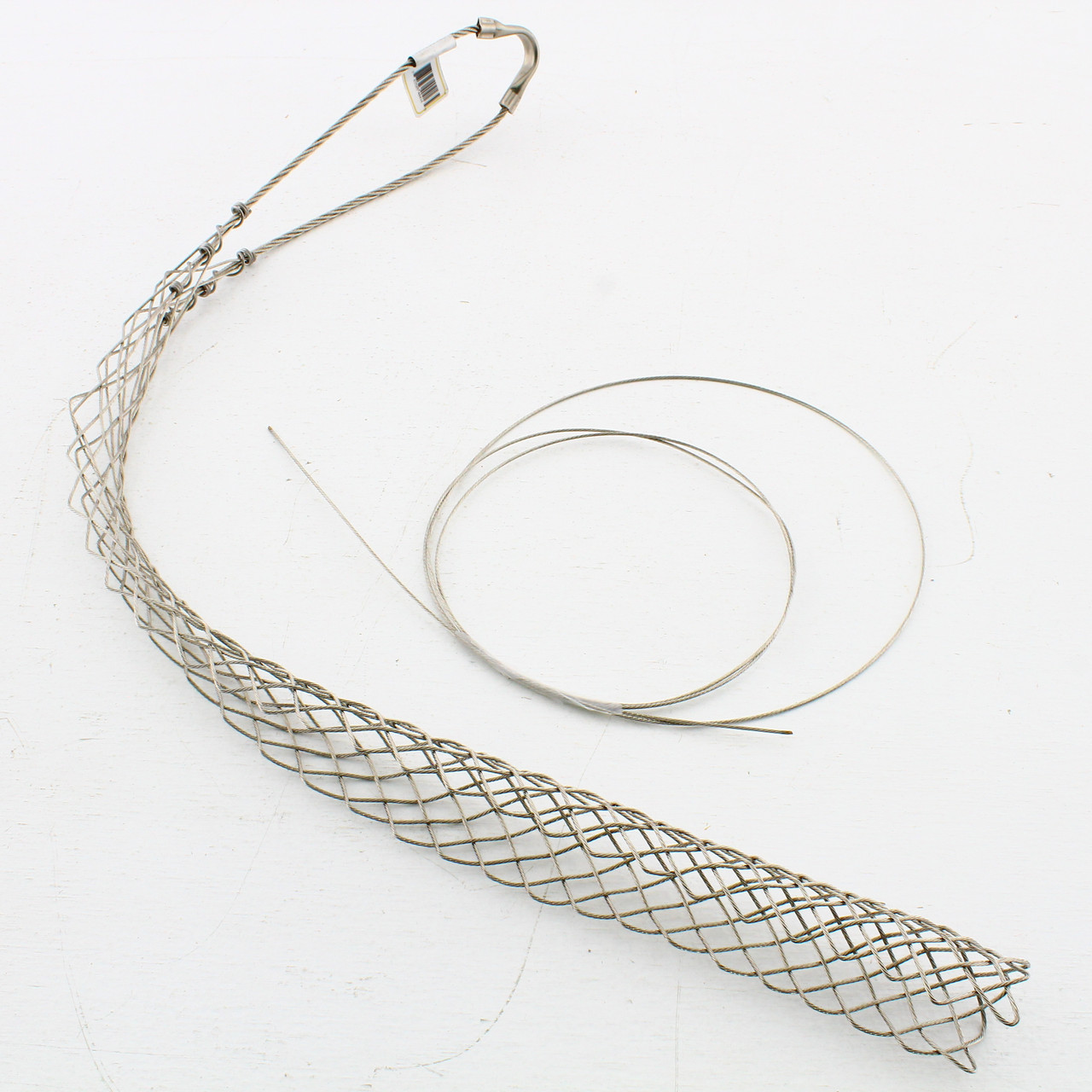

Hubbell Medium Support Grip Single Eye Lace-Up 1.00-1.24" Bronze/Tin 02205010

Your Price: $62.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Hubbell 02205010 medium duty cable support grip. Used to hold the weight of electrical cable as it hangs in a vertical, sloping, or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion, and contraction. Features include:

Cable diameter range: 1.00"-1.24"
Approximate breaking strength: 1610 lbs.
Working load: 161 lbs.
Eye length: 9"
Wire mesh length: 22"
Made of high grade, non-magnetic tin-coated bronze strand
Split grip to wrap around cable mid-span
For permanent support when cable end is not available.
Positive action mesh grip
Strand equalizer positions wires for equal loading throughout the entire grip length

MPN:

02205010

Cross Reference:

Not Available

Color:

N/A

Condition:

New

UPC:

783585404165

Weight:

0.45 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
