- Eaton White Anyplace Switch w/Lamp Module Z-Wave RF Battery Operated RFASAPMDW
QTY Available to Ship:
10
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description

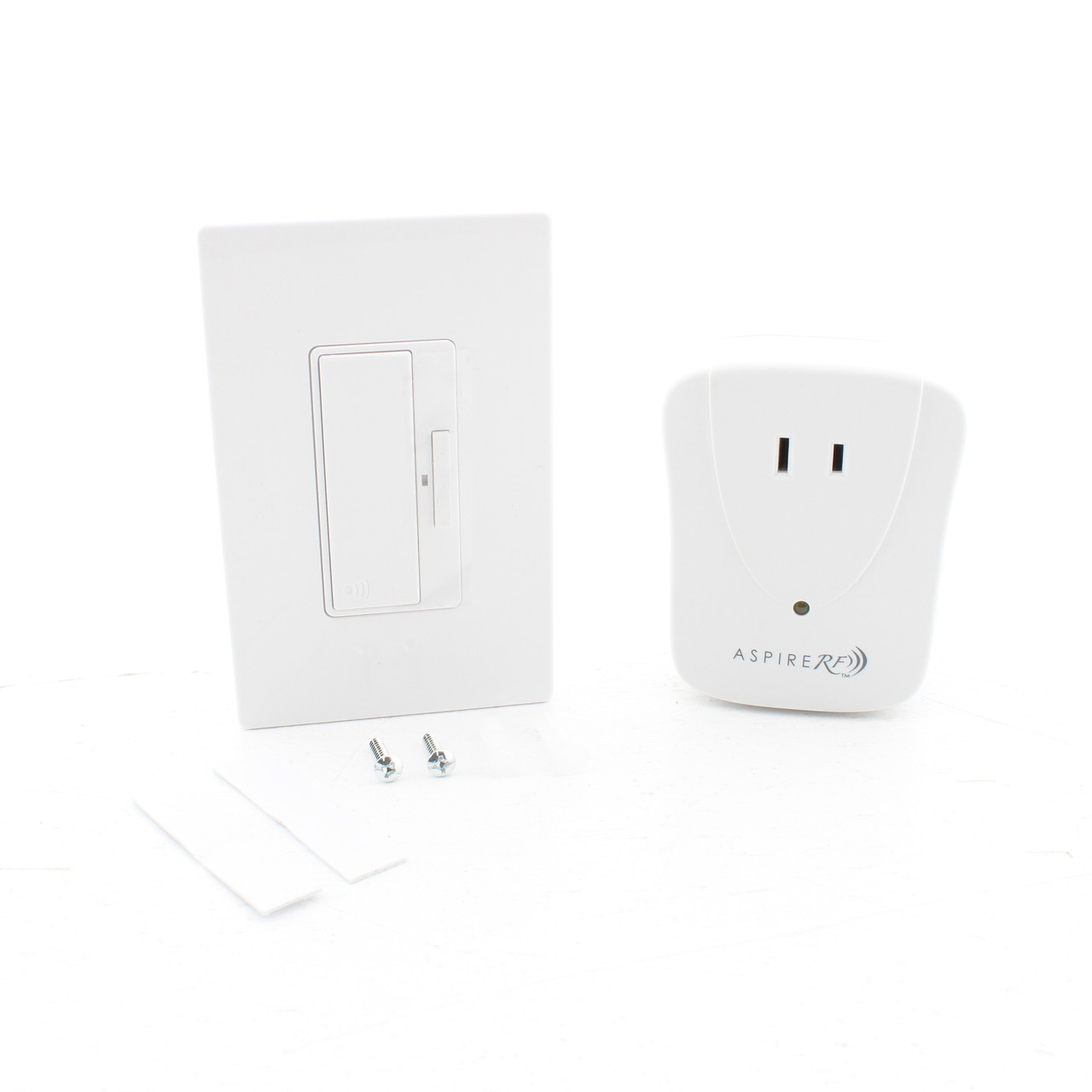

Eaton RFASAPMDW designer white Z-Wave battery operated switch combination kit. Kit includes: (1) RF9575DW designer white Anyplace battery-operated switch and (1) RFAPM white RF lamp switching module. Features include:
- Conveniently add a switch wherever you need it - no need for additional wiring
- Can be used in combination with RF switches, dimmers and receptacles
- Can be used in existing Z-Wave network or as a stand-alone controller
- Controls up to 5 RF devices
- Eliminates the need for a separate controller
- Mounts on any flat surface
- Includes 2 CR2025 batteries
- Includes 2 pieces of double-sided tape as well as mounting screws and anchors for maximum installation flexibility
- ON/OFF switch will turn associated Z-Wave wireless switch, receptacle or dimmer ON/OFF
- The UP/DOWN dimmer buttons will control the light level when associated with a Z-Wave master dimmer
- Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
- Can be used in existing or new multi-gang installations with use of inner wallplate (RFBS22)
- Compatible with Z-Wave devices for wireless 3-way control, eliminating the need for traditional 3-way wiring or for a dedicated traveler wire
- Single button programming
- Child Lockout feature
- Goes into Sleep Mode to reduce power consumption & extend battery life (LED indicator is OFF)
- Blue LED indicator: normally OFF; blink once when turning a device OFF; ON for 2 seconds and then OFF when turning a device ON; blinking when device is not readable; blinking rapidly during install/uninstall process when RF9575 is used as a controller
Features of the lamp switching module include:
- Rated 600W 120VAC
- Switch module provides 120V/AC NEMA 1-15R receptacle for use with a wide variety of lamps
- Appliance Switch Module’s electro-mechanical push button located on side of device for inclusion and ON/OFF operation
- Modules can be controlled remotely by other Z-Wave devices through association of up to 5 devices
- Quiet relay switching
- Amber LED indicates ON/OFF load status
- Single button programming
- Can be included in Scenes
- Child lockout feature
- All-ON/All-OFF inclusion
- Panic mode capability
- Patented indicator system alerts if module is not set up in the network
- Configurable “Power ON Status” (ON/OFF/last level)
- Power failure memory
MPN:
RFASAPMDW
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
032664740688
Weight:
0.65 LBS
