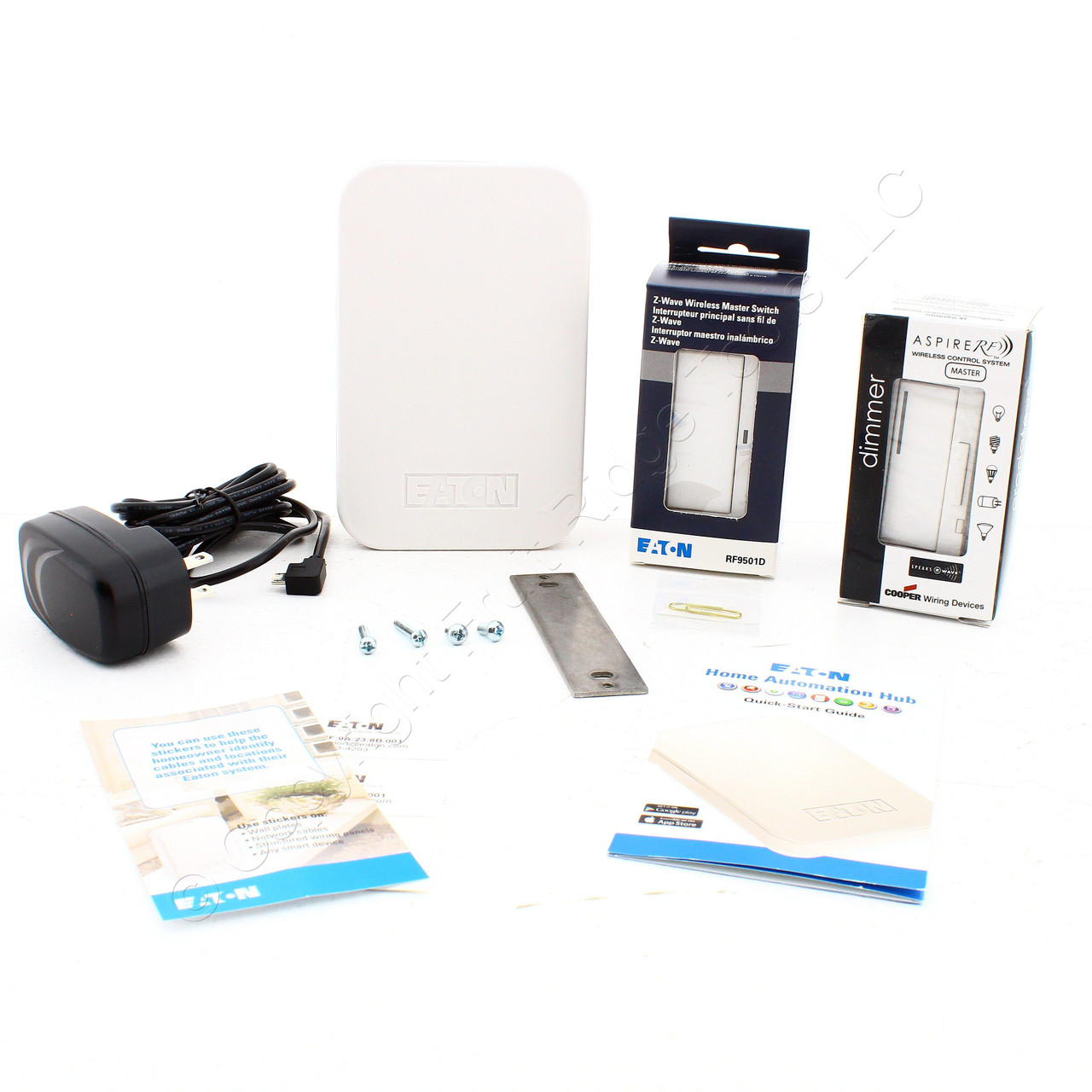

Eaton Home Automation Kit Hub Dimmer Switch WiFi Z-Wave RF HOMECT RF95KIT41

Eaton RF9540-NDW decorator white Z-Wave dimmer; and (1) Eaton RF9501DW decorator white Z-Wave switch. Features of the HOMECT home automation hub include:

• Simple and quick installation
• App based local and remote control of hub and all devices connected to it
• AP/Ad-hoc WiFi mode for installation without an active internet connection
• Can be mounted on the wall or placed on a flat surface
• Powered by micro USB or Power over Ethernet (PoE). PoE injector (part #RFPOE) purchased separately
• Built-in WiFi and Z-Wave radios for connecting wide variety of smart home devices
• Automatic over the air software updates to ensure the device is always up to date
• Support for configurable scenes, schedules and notifications (text and email)
• Auto discovery and simple setup of popular smart home products including lighting controls, thermostats, garage door openers, door locks, sensors and more
• Works with Eaton Home App (available for IOS and Android devices)
• Works with Amazon Alexa for voice based control

The Eaton RF9501DW decorator white Z-Wave switch is Residential Grade, multi-way, grounding, with 4 pre-stripped 6" wire leads for line, load, ground and neutral, rated 15A 120/277VAC. Features include:

• Replaces regular switches or dimmers (where a neutral is present)
• Manually controlled and remotely controlled by commands sent from an ASPIRE RF controller or other Z-Wave compatible controllers or programs
• ON/OFF control of Incandescent, Magnetic Low-Voltage (MLV), Electronic Low-Voltage (ELV) and Fluorescent lighting loads
• Utilizes existing 120 V/AC 60Hz standard house wiring and fits in a standard wallbox
• No new wiring required
• Electro-mechanical push button for On/Off operation
• Blue LED illuminates to indicate On/Off status
• RFI filtering for radio, audio and video equipment
• Single button programming
• Patented indicator system alerts if switch is not set up in the network
• Single Pole, 3-Way, 4-Way
• Can be associated with up to 5 other devices
• Programmable Delayed Off Mode (up to 4 minutes), default is 10 seconds
• Child Lockout feature
• All-On/All-Off inclusion
• Patent pending Panic Mode inclusion
• Configurable 'Power On Status'
• Maximum amperage for switch is 15A
• Rating: 120V/AC 60Hz
• Uses 300 Series Z-Wave chip @ 40Kbs
• Pre-stripped 6" wire leads
• Z-Wave Compliant Certified
• Temperature Rating: 32° F to 104° F (0° C to 40° C)

Eaton RF9540-NDW designer white Z-Wave dimmer is Residential Grade, multi-way, grounding, with 3 pre-stripped 6" wire leads for line, ground and neutral, rated 300W for dimmable LED/CFL, 600W for incandescent/halogen/magnetic low voltage/electronic low voltage/fluorescent. Features include:

• Adjustable low-level trim setting helps prevent flickering
• Adjustable high-level trim setting for additional energy savings
• Programmable rapid start feature ensures lamp start-up even at low dim levels
• Seven step green LED display alongside push pad indicates selected light level and reduces brightness when OFF (location feature)
• Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
• Preset feature allows user to return to previous light setting when turning lights ON
• Light level may be adjusted with the dimmer state ON or OFF
• 10 second delayed-OFF feature by pressing and holding push pad for 2 seconds when dimmer is ON
• Pressing and holding push pad for 2 seconds when dimmer is OFF brings light to full brightness
• Amber LED at bottom of LED display indicates ON/OFF load status
• Master controls as many as 5 accessory units for multiple location installations

UPC:

N/A

Weight:

2.30 LBS
