New NSI Easy-Splice "Push-On" Gel Stub Splice Kit 250-500 up to 1000V KCMIL GSS-500

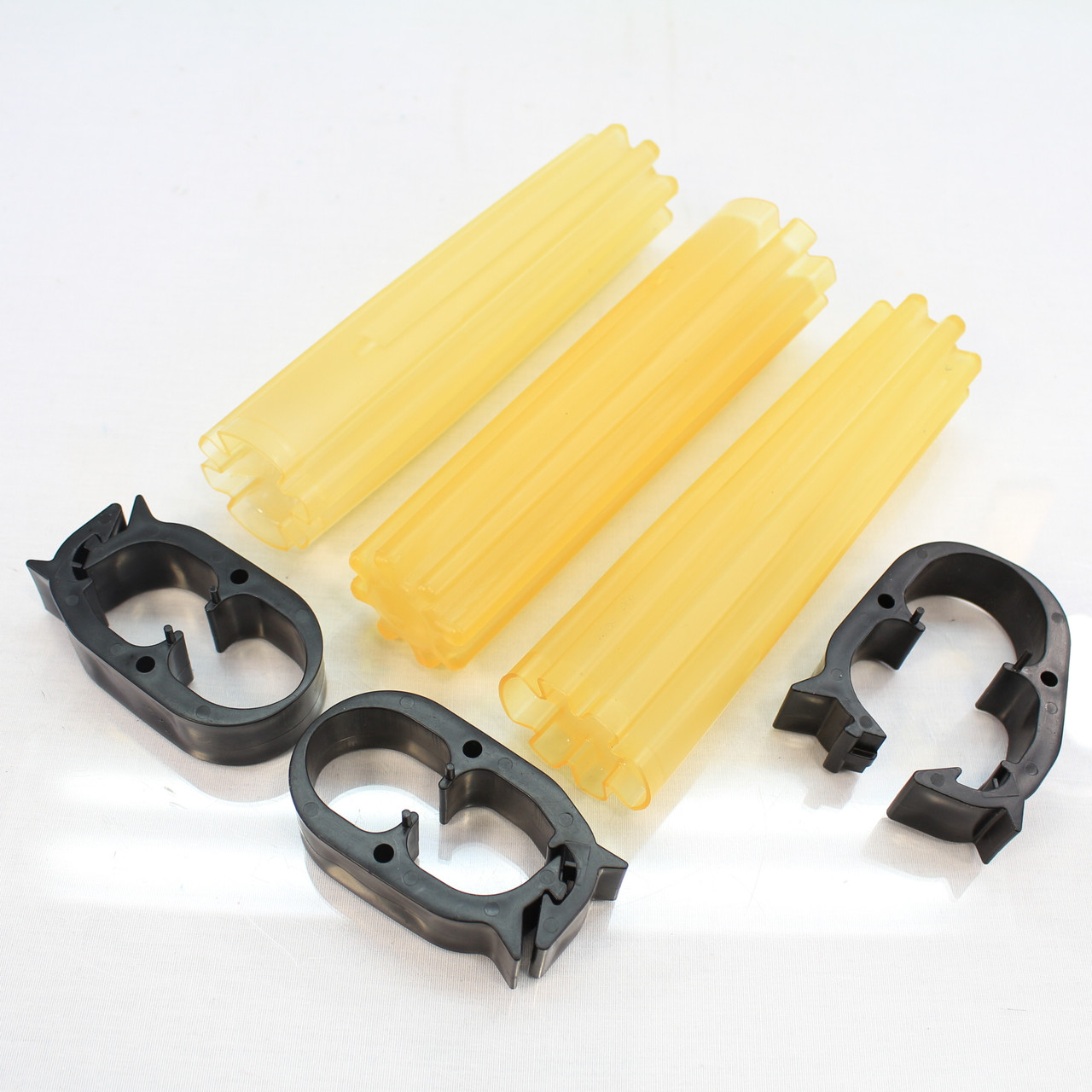

NSI GSS-500 Easy-Splice "Push-On" gel stub splice kit. Easy-Splice™ gel stub splice kits quickly and conveniently insulate, seal, and protect stub splice connections up to 1,000 volts. The robust yet compact design is engineered to handle the harsh environment of motor and many other connection applications (including street lights). The specially formulated material provides excellent abrasion resistance, insulation value, and UV resistance (see chart below). In addition, the cap is clear allowing visual inspection of connector positioning during installation and connector performance during service life. Each cap size is designed to fit a wide range of cable sizes. The expandable design keeps the cap as small as possible allowing it to expand only as much as needed to fit. GSS connector kits provide the fastest installation. Simply slide the cover down over the connection and snap the clamp closed. No extra materials (greases) are required, the sealant gel is already in the cap. Common uses for the GSS connector are: street lights, motor connection, irrigation systems, HVAC, outdoor lighting, and over wire nuts for a secure seal. Rated 105˚C. UL listed. The GSS-10 kit is designed for three phases in one cap. It includes one gel filled cap, one cap clamp, and one phase separator. The remaining kits include three of each – one per phase. Each is individually packaged; packaging may differ from photos. Features include:

• Feeder conductor size: 250-500 MCM (125-250 MM)
• Maximum Bolt Width: 1.1 (28)
• Maximum Bolt Length: 1.85 (47)
• Lug Total Length: 5 (127)
• Lug Barrel Length: 2 (51)
• Cap Length: 8 (203)
