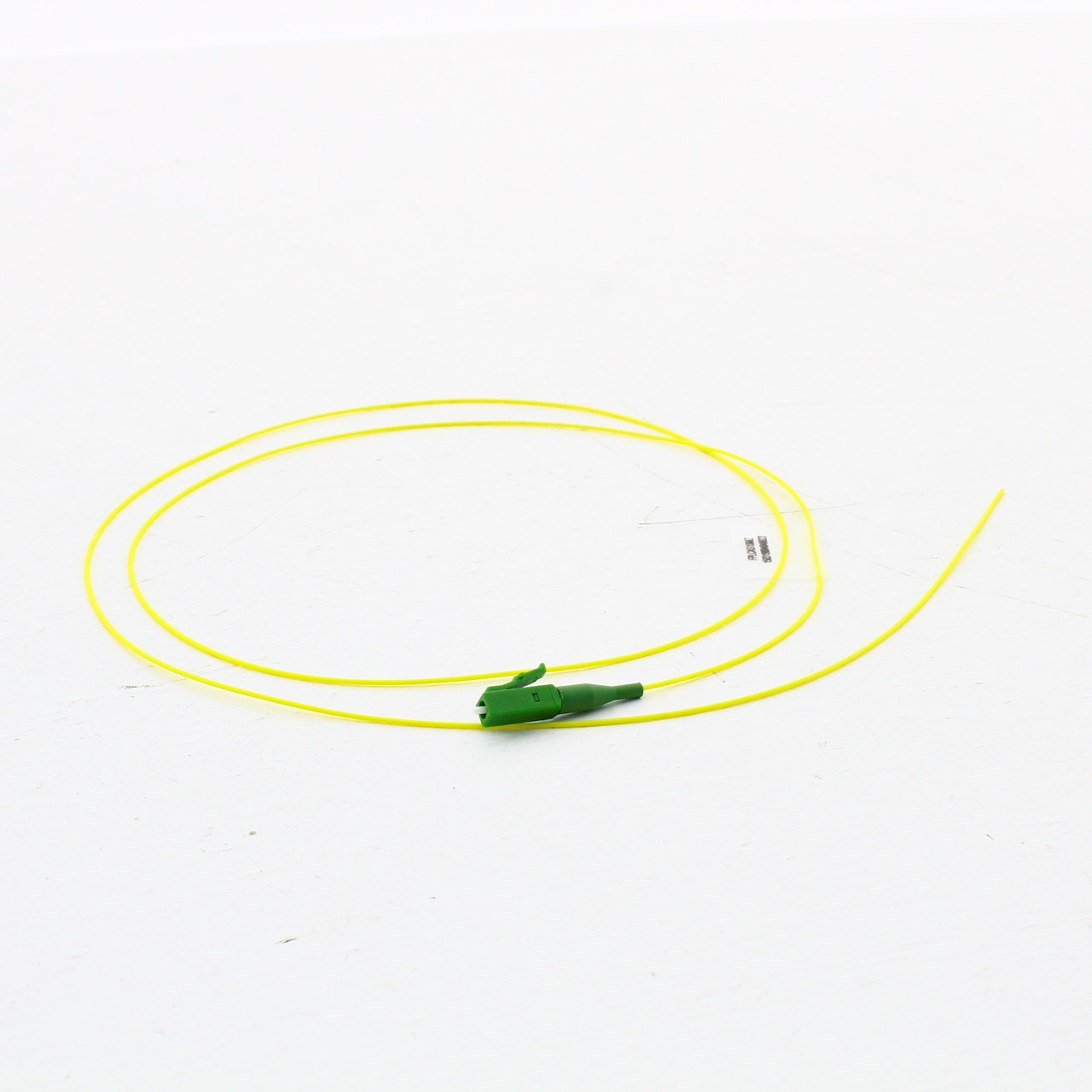

Hubbell Fiber Optic 1-Cable Pigtail LSZH SM LC APC OS2 3m FPLCAS1SMZ

Your Price: $7.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Hubbell FPLCAS1SMZ single-fiber pigtail. Features include:

Connector: LC
Fiber grade: OS2
Mode type: Single Mode
Tip polish style: APC (angled physical contact)
Core/cladding: 9/125 micron
Length: 3 meters
Cable type: LSZH (low smoke, zero halogen)
Cable diameter: 900 micron
Mated pair insertion loss: < 0.35 dB (0.15 dB Typical)
Mated pair return loss: > 55 dB
Factory polished and 100% tested for superior performance
100% tested, heat cured epoxy termination
Ferrule material: zirconia ceramic

MPN:

FPLCAS1SMZ

Cross Reference:

Not Available

Color:

N/A

Condition:

New

UPC:

662620323015

Weight:

0.05 LBS
