- Eaton E50 Heavy Duty Sealed Limit Switch Side Pushbutton Spring Return E50DS1
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

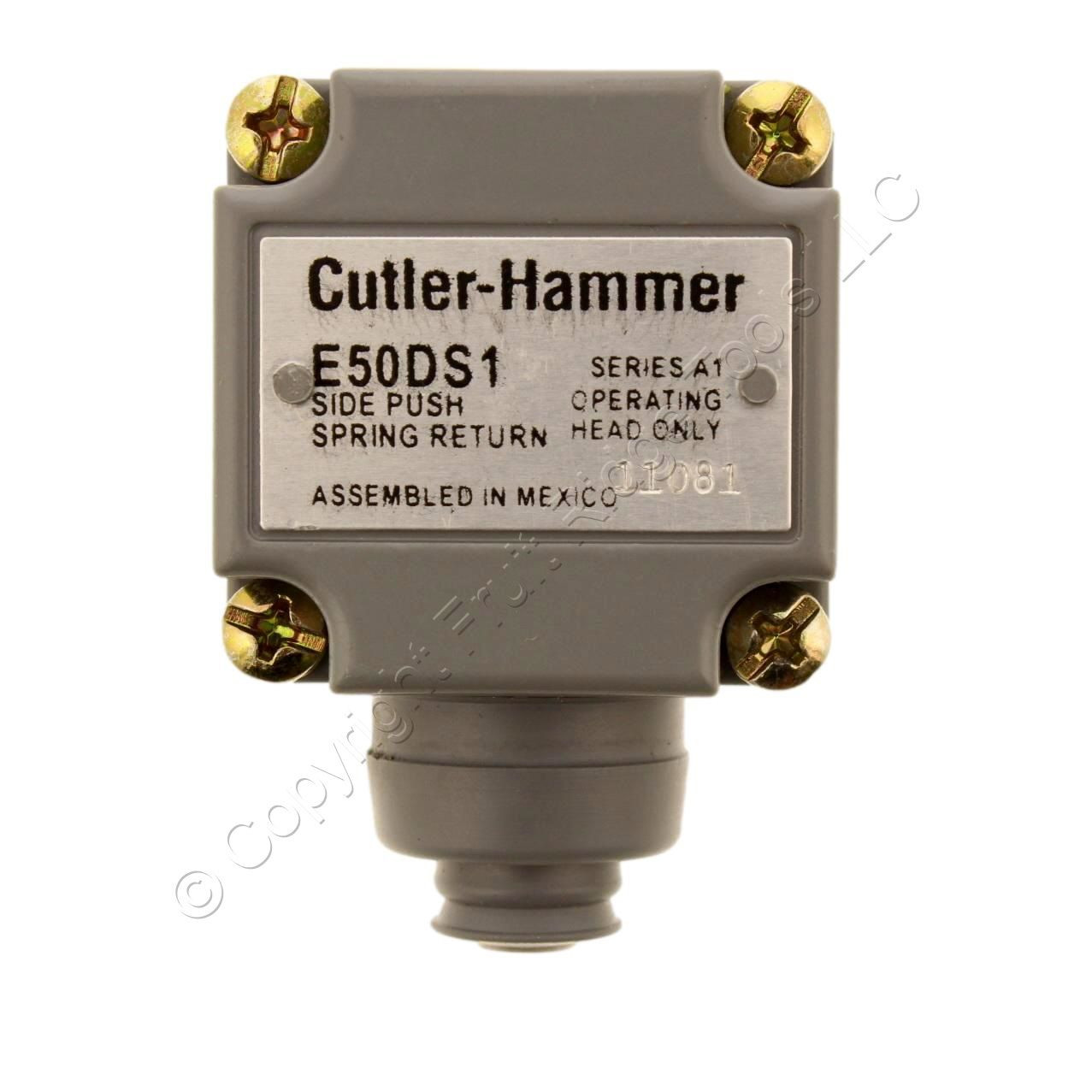

Eaton E50DS1 limit switch. Standard Viton gaskets, seals and boots and a zinc die cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents, and hydraulic fluids found in machine tool, automotive, waste water treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Features include:
- Modular, plug-in components (head, body and receptacle) provide application flexibility, reduced inventory and less downtime
- Manufactured to take the physical and environmental abuse (including cutting fluids and chemicals) of harsh industrial environments
- Chemical resistant Viton gaskets, seals and boots are standard, and so are captive, posi-drive screws
- The switches have terminal identification on the nameplate for a visual wiring checkout without guesswork. Heads and switch bodies can be replaced without rewiring
- 600V rating, ridge-topped contacts and wiping action assure continuity even to logic level circuits
- Keyed, four direction head positioning
- Standard 5 degree pre-travel and 90 degree total travel
- Side pushbutton
- Spring return
- Travel to operate contacts: 0.065"
- Travel to reset contacts: 0.030"
- Total travel: 0.250"
- Force to operate contacts: 4 lbs.
- Minimum return force: 8 oz.
MPN:
E50DS1
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
10782113290628
Weight:
0.40 LBS
