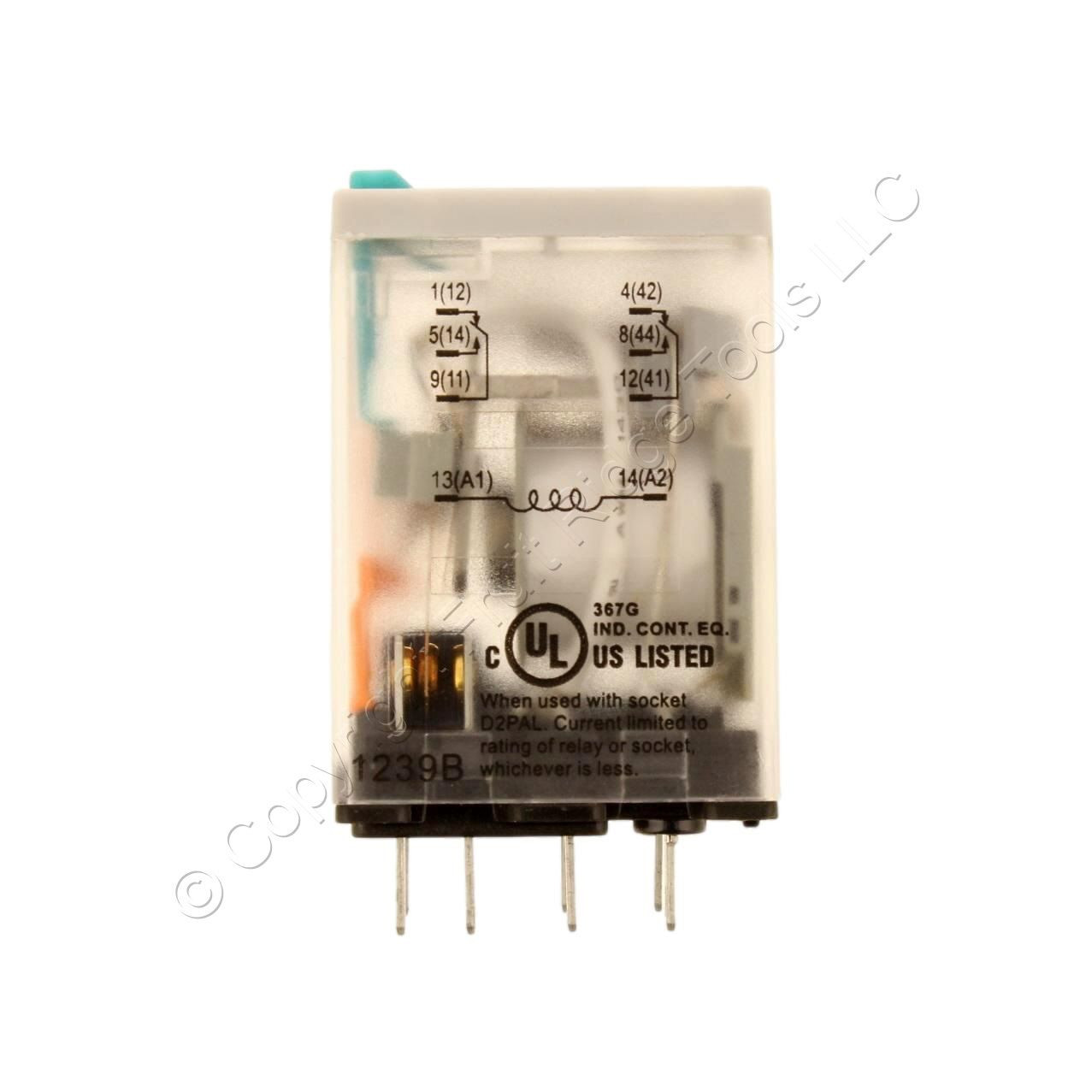

Eaton D2 Series Plug-In Control Relay DPDT 48VDC Coil 10A 2,600 Ohm D2PF2AW1

Your Price: $13.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Eaton D2PF2AW1 full-featured relay. Features include:

Full featured version: LED test button, flag indicator, lock-down door, finger-grip cover, ID tag
Flag indicator shows relay status in manual or powered condition
Bipolar LED status lamp allows for reverse polarity applications; shows coil ON or OFF status - ideal in low light conditions
Color-coded pushbutton identifies AC coils with red or DC coils with blue pushbuttons; allows for manual operation of relay without the need for coil power - ideal for field service personnel to test control circuits
Lock-down door, when activated, holds pushbutton and contacts in the operate position - excellent for analyzing circuit problems
Finger-grip cover allows operator to remove relays from sockets more easily than conventional relays
White plastic ID tag/write label used for identification of relays in multi-relay circuits
Coil voltage: 48VDC
Contact configuration: DPDT
Contact material: silver alloy
Contact rating: 10A
Enclosure: IP40
Maximum voltage: 300V switching
Resistance: 2,600 Ohms
Series: D2 Series
Terminals: plug-in

MPN:

D2PF2AW1

Cross Reference:

Not Available

Color:

N/A

Amperage:

10A

Condition:

New

UPC:

782116484522

Weight:

0.10 LBS
