- 5 Hubbell Fiber Optic Patch Cords LSZH OM3 Cable Duplex MM LC-LC DFPCLCLCE2MMZ
QTY Available to Ship:
5
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description

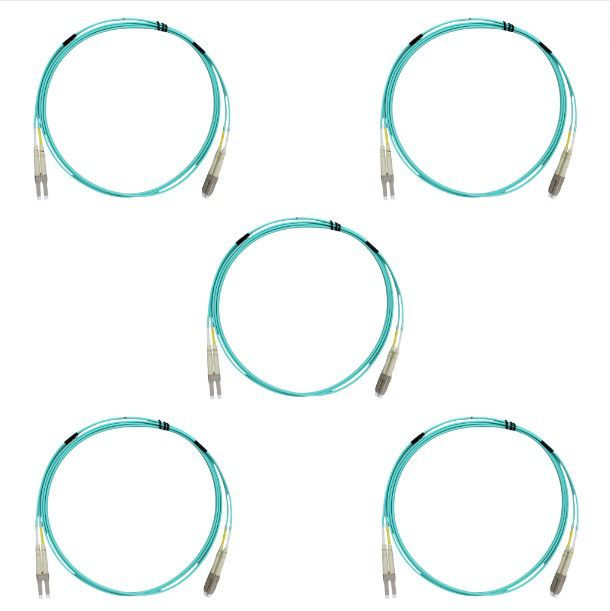

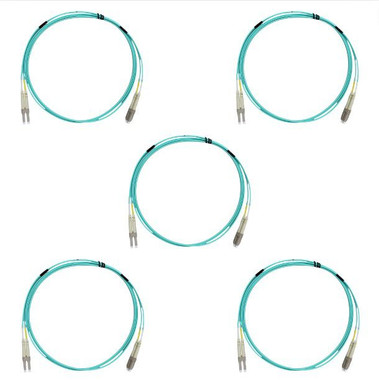

5 Hubbell DFPCLCLCE2MMZ OptiChannel fiber optic patch cords. Features include:
- Connectors: LC to LC
- Fiber grade: OM3
- Density: Duplex
- Mode type: Multimode
- Tip polish style: PC (Physical Contact)
- Core/cladding: 50/125 micron
- Length: 2 meters
- Cable type: LSZH (low smoke zero halogen)
- Cable diameter: 1.6 mm to 2.0 mm
- OM3 distance limits: 300 meters @ 10G; 100 meters @ 40G/100G
- Mated pair insertion loss: < 0.50 dB (0.35 dB Typical)
- Mated pair return loss: > 26 dB
- Factory polished and 100% tested for superior performance
- 100% tested, heat cured epoxy termination
- Ferrule material: zirconia ceramic
MPN:
DFPCLCLCE2MMZ
Cross Reference:
Not Available
Color:
N/A
Condition:
New
UPC:
662620320052
Weight:
0.75 LBS
