Pair GlideRite Hardware 16" Side Mount 150lb Load Capacity Full Extension Standard Drawer Slides Ball Bearing 1680ZC

ONE Pair GlideRite Hardware 150 lb. soft close drawer slides (1 pair is needed for 1 drawer and 1 pair is made up of 2 parts). Side-mounted, smooth cushioned closure action, Full Extension, allowing complete access to the back of the drawer, steel ball bearing drawer slide is a precision telescopic slide, with cushioned in and out stops and a positive hold in feature. Ideal use is in office furniture, cabinets, closets, kitchens and medical furniture. Meets or exceeds all BIFMA, BHMA and ANSI standards for quality. They have rail lift off disconnect and cushioned closure bumpers. They measure 15-7/8" long, 3-13/16" high, and 1/2" thick with 15-3/8" total travel. Features include:

• Length: 15-7/8"
• Width: 3-13/16"
• Side Clearance: 1/2"
• 15-3/8" total travel
• Length fully open: approx. 32"
• Load Capacity: 150 lbs
• Materials: High grade cold rolled steel that is electro-zinc plated
• Mounting Screws: NOT Included

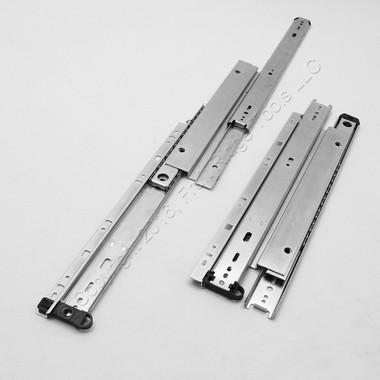

Please refer to the attached photos. The 6th photo shows you which is the top and which is the bottom. On the right side of the photo you can also see the black pinch tab circled. If you pinch this, the top part can be lifted and removed. The top part is the piece that you would attach to the drawer itself, so this is how the drawer would be removed if necessary. The 7th photo attached just shows the two pieces once the tab is pinched and the top section is lifted and removed. (So the top piece in photo 2 would be the part that you would install on the drawer).
